The Surface Mobility Platform

The GEARS-SMP is a research quality Surface Mobility Platform designed for university, college, and high school programs engaged in real-world robotic research. This research robot was developed using mobile platform technology created by Gears Educational Systems for a client-authored NSF grant.

The structural components of the GEARS-SMP chassis are custom manufactured from black anodized 6061-T6 aluminum alloy tubing suspended on a 1/2" diameter titanium alloy main axle.

The chassis of the GEARS-SMP surface Mobility Platform is scalable and easily customized so you can create mission specific configurations and accommodate various payload requirements.

The body of the chassis remains extremely stable while roving over rough terrain. This makes the GEARS-SMP and ideal camera platform or reconnaissance vehicle.

The GEARS-SMP can be broken down and field stripped in less than 3 minutes for easy transportation by car, boat, or plane.

The GEARS-SMP is a robotic engineering product intended for educational programs that wish to integrate the following robotic technologies:

  • Sensors
  • Remote Visualization
  • GPS/Navigation Strategies
  • Alternative Energy systems
  • Autonomous Control
  • Extended Mission Capabilities
  • Increased Payload Capacity

View a video that illustrates the GEARS-SMP capabilities. In this configuration, the chassis is fitted with a Heliocentris 50 Watt PEM fuel cell and a 250 liter Ovonics metal hydride storage bottle.

Surface Mobility Platform Construction Guide

Standard Chassis Specifications

  • Weight: @ 18 lbs
  • Additional Payload Capacity: @ 18 lbs
  • Overall Length: 24 inches
  • Overall width: 24 inches inches
  • Overall Height: 13 inches
  • Wheel Base: @ 16.5 inches
  • Tire Diameter: @ 7 inches
  • Average Ground Clearance: 4.5 inches or 30% of overall height

Structural Components

The GEARS-SMP chassis is scalable and customizable. Using GEARS-SMP basic connectors and off the shelf 1-1/4" Aluminum square tubing, it is possible to create mission specific custom chassis configurations. It is possible to create three different configurations just by ordering different connectors.

View an illustrated description of the basic GEARS-SMP chassis parts.

Gear Motor Options

Motor Specifications Comparison Data Sheet

Note: DC brush motors can be driven at voltages greater or lesser than the specified winding voltage. Greater voltage results in faster speeds, but generates proportionally higher currents and heat.

  • Standard GEARS-SMP Motor
    The 65.5:1 Gear ratio provides a usable compromise between speed, torque, and current draw. Observed performance: 2 fps at 12 volts/ Max continuous tractive force is 8 lbs @ 2.25 amperes per wheel.This motor is particularly well suited to off-road use.
  • Fast GEARS-SMP Motor
    The 19.7:1 Gear ratio driven by a 9.55 volt armature provides high speed with limited torque. Observed performance: 6+ fps at 12 volts/ Max continuous tractive force is 1 lbs @ 2.25 amperes per wheel. This is a competition motor option and can be used to navigate greater distances in less time over flat terrain. This motor option is not well suited for off-road use.
  • High Torque GEARS-SMP Motor
    The 218.4:1 Gear ratio provides maximum torque at minimal current draw. Observed performance: 2 inches/sec. at 12 volts/ Max continuous tractive force is 7.5 lbs @ 0.5 amperes per wheel. This motor is particularly well suited to off-road use where short distances and precise motion is required. Due to the low current draw and extended run time, applications might include emergency/disaster reconnaissance and/or biological field observations over very limited distances.

For more information about The GEARS-SMP, contact and ask how you can use it to add more educational excitement to your Science and Engineering programs.

The CoroWare Explorer, a modified Surface Mobility Platform.

Research Quality Off-Road Platform

View the Surface Mobility Platform in action.

Fuel cell courtesy of Heliocentris. H2 Storage by Ovonics.

Rugged black anodized 6061-T6 aluminum alloy tubing components.

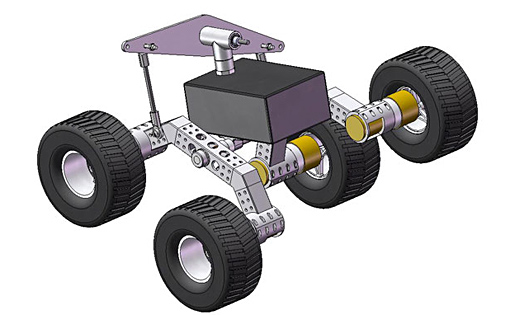

SolidWorks assembly drawing of the standard configuration GEARS-SMP

SMP Maneuvers Over Rocks
Photo of SMP courtesy of the University of Girona, Spain.
GEARS SMP Rescue Robot Testing at ARLab University of Girona

Small 3-Hole Frame version pictured here is also available.
